Use only silicone hose that is the correct size and pressure rating for your application when fitting your boost controller – other hoses will be affected by heat and will eventually crack or split, which could cause excessive boost pressure and engine damage
Ensure that all plumbing is secured with clamps or cable ties.
Your boost controller should be mounted at least 100mm from any heat source
A Turbosmart Fuel Cut Defender may need to be used in conjunction with your boost controller.
The boost dial has a left-handed thread, be sure not to over-tighten it, as this will damage the boost controller.
Please note that the boost controller dial’s one turn (click) does NOT correspond to 1 PSI change in boost pressure.
Recommendations
Turbosmart recommends that the Air Fuel ratio is checked once boost pressure is set
Turbosmart recommends that boost pressure is set using a Dynamometer and not on the street
Turbosmart recommends that an accurate boost gauge be permanently fitted to the vehicle
Turbosmart recommends that your boost controller is fitted and adjusted by an appropriately qualified technician
Tools Required
General mechanic Tools
How To Install Your Boost Controller
Internal Wastegate Setup
Allow the engine to cool down before installing your boost controller

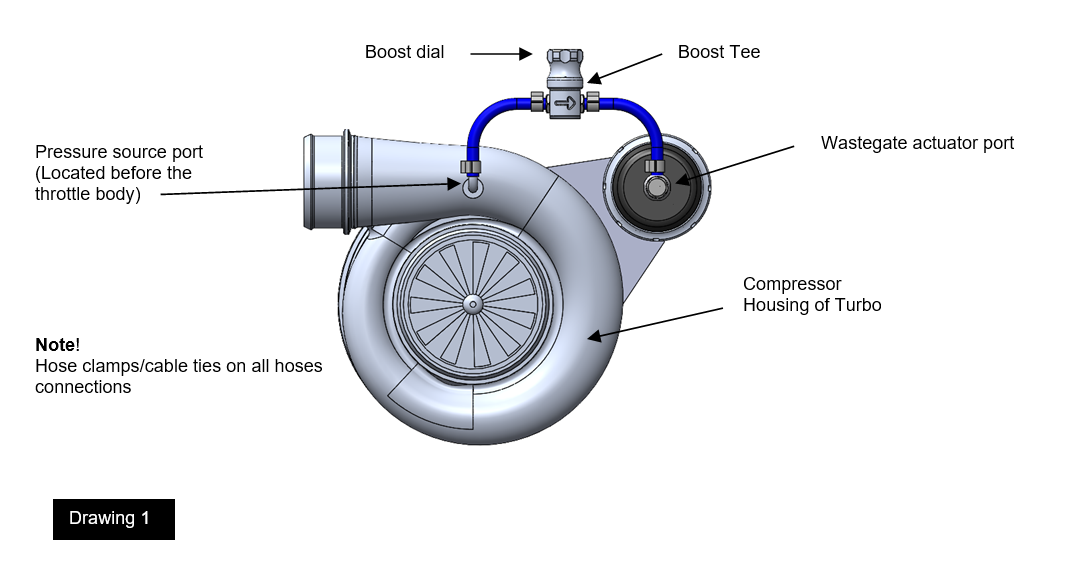

Locate the pressure source port and the wastegate actuator port on the turbocharger assembly (refer drawing 1)
Remove the factory boost control solenoid if fitted from the boost pressure supply port while leaving the solenoid connected to the ECU
Install your boost controller in the wastegate pressure line with the wastegate arrow pointing towards the wastegate actuator
If your wastegate actuator has additional ports, these will need to be blocked
Secure all silicone hose ends with hose clamps
Mount your boost controller bracket onto the vehicle, then attach the boost controller onto the bracket with the supplied screws
Make sure the boost dial is turned completely anti-clockwise before adjusting.
How To Install Your Boost Controller cont.
External Wastegate Setup
Allow the engine to cool down before installing your boost controller
Locate the bottom port on the external wastegate and the pressure source port (refer Drawing 2)
Install the Boost Tee in the wastegate pressure line with the wastegate arrow pointing towards the bottom port on the wastegate
Secure all silicone hose ends with hose clamps
Mount your boost controller bracket onto the vehicle, then attach the boost controller onto the bracket with the supplied screws
Make sure the boost dial is turned completely anti-clockwise before adjusting.
Parrallel Twin Turbo Setup
Allow the engine to cool down before installing your boost controller.

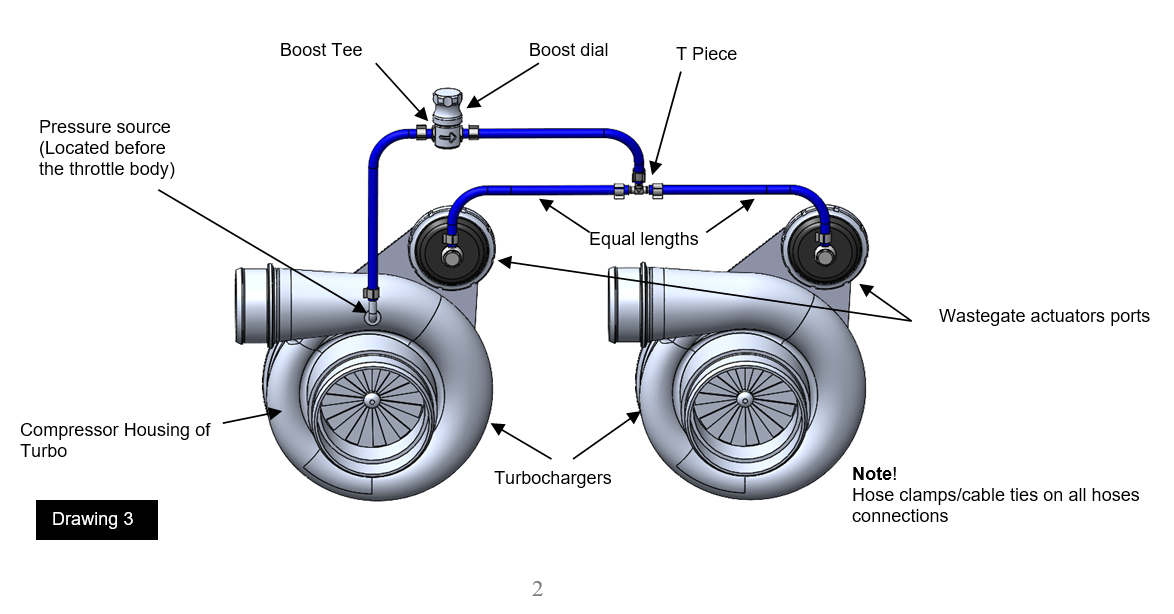

Locate the wastegate actuator ports on both turbochargers and a pressure source port (refer Drawing 3)
Remove the factory boost control solenoid if fitted from the boost pressure supply line.
Install your boost controller in the wastegate pressure line with the wastegate arrow pointing towards the wastegate actuators.
Be sure to keep the hoses joining the wastegate actuators at equal lengths.
Secure all silicone hose ends with hose clamps.
Mount your boost controller bracket onto the vehicle, then attach the boost controller onto the bracket with the supplied screws.
Make sure the boost dial is turned completely anti-clockwise before adjusting.
Note for sequential turbo systems: Sequential turbo setups can be complex and vary from car to car. Please get in touch with your local Turbosmart dealer for more details.
.
Setting Boost Pressure
Important Notes on Boost Pressure Adjustment
Adjustment to your boost controller is made by rotating the Boost Dial. Please note that the one turn (click) of the boost controller dial does NOT correspond to 1 PSI change in boost pressure.
Rotate in a clockwise direction to increase boost and the reverse direction to decrease the boost
Before making any adjustment, the Boost Dial will need to be fully closed (anti-clockwise).
Step 1: Apply full load to the engine in high gear (at least 3 or 4 gear) at full throttle and note the boost pressure.
Step 2: To increase boost, rotate the Boost Dial clockwise
(maximum of 1 complete revolution at a time)
Step 3: Apply full load to the engine and note the boost pressure.
Step 4: Compare the actual boost pressure with the desired boost pressure. If the actual pressure is below the desired pressure, return to step 2. If the actual is above the desired boost, then decrease by rotating the Boost Dial anti-clockwise and return to step 3.
Boost Spiking
If boost spiking occurs and is undesirable for your application, the gate system can be removed to give you a less aggressive
boost curve. This modification is only required in a minimal number of applications.
Important Notes on Gate System Removal
The following steps can remove the gate system.
Perform this modification on a clean bench so that the ball and Spring is not lost.
Allow the engine to cool down before removing the Boost Tee from your vehicle
Identify the input nipple with the restrictor at the end.
Loosen the input nipple and remove the ball and spring.
Check that the internal air passages are clear and free from debris
Re-install the boost controller by following the instructions for your setup
You will need to re-adjust your boost settings after the removal of the gate.
Troubleshooting
The following points should be checked if you find that your engine is developing excessive boost, the boost pressure is fluctuating, or
the desired boost level cannot be achieved. Please note the following checks will cure 99% of problems experienced when fitting a
Turbosmart boost controller.
Check that the boost controller is installed so that the arrow points toward the wastegate actuator.
Check the joining hoses for splits, cracks or loose connections and are the correct size for the application.
Check to see if the boost controller is blocked or contaminated with dirt or debris.
Ensure that there is nothing but the boost controller in the hose between the pressure source and the wastegate actuator, ie tee pieces for boost gauge or to factory boost solenoid.
Pressure test the wastegate actuator for leakage. The diaphragm or housing may be cracked or split.
