BlackBox Instructions

TS-0305-1001 - BlackBox Electronic Wastegate Controller - Instructions

Product Name:

BlackBox Electronic Wastegate Controller

Product Description:

BlackBox Electronic Wastegate Controller

Product Number:

TS-0305-1001


Important Information About Your Black Box Wastegate Controller

  1. The gate will be closed if using PWM as the control strategy, and the ECU requires 0%.
  2. The BlackBox Instructions are not a substitute for basic tuning knowledge.
  3. Turbosmart accepts no responsibility for the incorrect installation of this product which is potentially hazardous and can cause serious engine damage or personal injury.
  4. Turbosmart recommends that an appropriately qualified technician fits your Black Box.
  5. Consult your local tuning specialist before setting your boost pressure; setting a boost beyond the capability of your engine can result in severe engine damage or failure!
  6. Turbosmart recommends checking the engine’s Air/Fuel ratio once the desired boost pressure is set. Any increase in boost pressure can cause the engine to
  7. run lean, resulting in severe engine damage or failure.
  8. Turbosmart recommends that boost pressure is set using a Dynamometer and not on public roads.
  9. The Black Box may not be able to completely compensate for a drop in boost pressure at high RPM due to the turbocharger operating beyond its maximum efficiency range, i.e., incorrect turbocharger sizing or excessive exhaust back-pressure.
  10. The Black Box cannot compensate for increases in boost pressure at high RPM due to inadequate waste gate flow capacity; the turbo system must maintain a steady base boost curve.
  11. For best results, your turbocharger should be correctly sized for your application.

Kit Contents



Please check that the following items have been provided in your Black Box packaging.

Part

Description

Use

1

Turbosmart Black Box

Main unit

2

Black Box Connector

Black Box Connector 34 Pin Allocation

3

Black Box Pins

34 x Black Box Pins

4

Sticker

Turbosmart Sticker



Tools Required

Part
Tool
1

Super seal Connector Crimping Tool

2
Micro USB to USB 2.0 A
3
2.5mm Allen Key

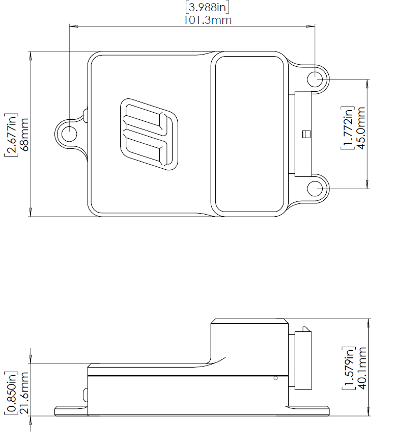

About Your Black Box

BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller. The BlackBox protects from the current demands and translation of basic and more advanced boost control strategies into a gate position and can be used on single or twin electronic wastegate systems for the ultimate boost control. They cooperate with a range of Factory, Aftermarket and Motorsport ECU.

The BlackBox is a Dual Channel, High current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50 and our Electronic poppet style gates, including CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates.

Blackbox Capability

The Black Box can use multiple strategies and accept PWM (Pulse Width Modulation) inputs as traditional boost control solenoids, 0-5v position target CAN position target. It CAN bus override for more advanced ECUs where control strategy can be developed natively. The Blackbox auto-calibration of Electronic External Wastegates via a full sweep and includes over-temp safety features using the temperature sensor inputs.

The BlackBox is pre-configured with the flow vs. lift calibration data of all Electronic Actuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC-based application. Unlimited control strategies can be implemented with the CAN-based override system, limiting your strategy only to your ECU’s capability.



Black Box Connector Pinout


Pin

Channel Name

Description

Wiring from eGates

1

12V Supply

Positive Battery Power Supply 1/4*



2

12V Supply

Positive Battery Power Supply 2/4*



3

Output 1+ve

eGate 1 Positive Power Supply 1/2*

eGate 1 Red Larger Gauge Motor Wire

4

Output 1+ve

eGate 1 Positive Power Supply 2/2*

eGate 1 Red Larger Gauge Motor Wire

5

Output 1-ve

eGate 1 Negative Power Supply 1/2*

eGate 1 Black Larger Gauge Motor Wire

6

Output 1-ve

eGate 1 Negative Power Supply 2/2*

eGate 1 Black Larger Gauge Motor Wire

7

Output 2 +ve

eGate 2 Positive Power Supply 1/2*

eGate 2 Red Larger Gauge Motor Wire

8

Output 2+ve

eGate 2 Positive Power Supply 2/2*

eGate 2 Red Larger Gauge Motor Wire

9

Output 2-ve

eGate 2 Negative Power Supply 1/2*

eGate 2 Black Larger Gauge Motor Wire

10

12V Supply

Positive Battery Power Supply 3/4*



11

12V Supply

Positive Battery Power Supply 4/4*



12

NC

No Connection



13

5.0V Supply

5V Sensor Supply

eGate/s Red Wire

14

OV AN Ref**

0V Sensor (Do NOT connect with Chassis GND)

eGate/s Black Wire

15

CAN 1 HI

CAN 1 High



16

CAN 1 LO

CAN 1 Low



17

Output 2-ve

eGate 2 Negative Power Supply 2/2*

eGate 2 Black Larger Gauge Motor Wire

18

Power Ground

Negative Battery Power Supply



19

AV1

Analog Voltage 1

eGate 1 White Position Sensor

20

AV2

Analog Voltage 2

eGate 2 White Position Sensor

21

NC

No Connection



22

NC

No Connection



23

FREQ IN 1

ECU eGate 1 PWM Input ***



24

NC

No Connection



25

Power Ground

Negative Battery Power Supply



26

Power Ground

Negative Battery Power Supply



27

AV5

eGate 1 Enable Switch Voltage



28

AV6

eGate 2 Enable Switch Voltage



29

AV7

Analog Voltage 7

eGate 1 Yellow Temperature Sensor

30

AV8

Analog Voltage 8

eGate 2 Yellow Temperature Sensor

31

NC

No Connection



32

FREQ IN 4

ECU eGate 2 PWM Input ***



33

0V FREQ REF**

0V Frequency (Do NOT connect with Chassis GND)



34

Power Ground

Negative Battery Power Supply



NOTE:
***The PWM input is commonly found on a standard electronic boost controller as a low side switch (or negative trigger). High side maybe used. But must conform to the voltage threshold listed in control options - Pulse Width Modulation (PWM) Input.

NOTE! 0V Supplies from the ECU are internally connected and should not be connected to battery ground.

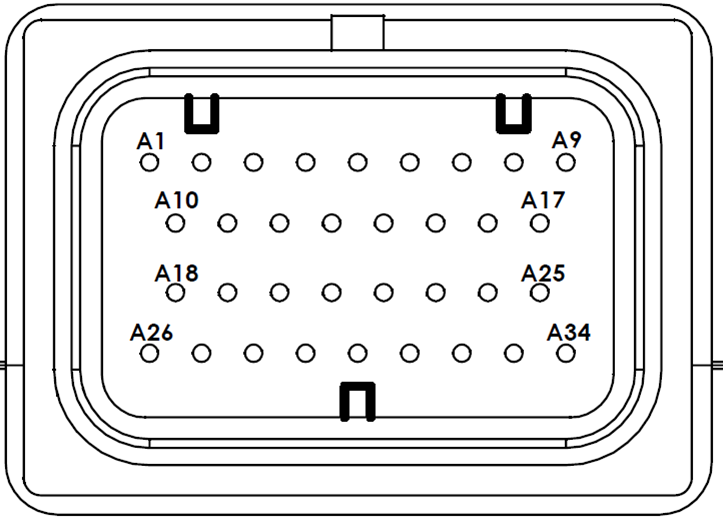

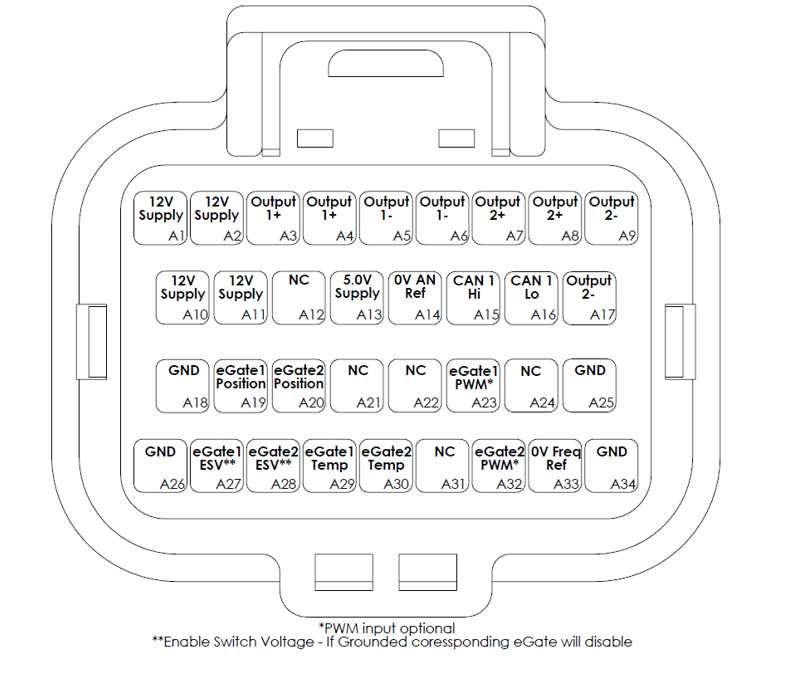

Looking into Black Box Pins


Fitting Your Turbosmart BlackBox

Using the Black Box Connector

The Black Box connector needs to be populated as defined by the pinout information for each eGate. To remove the connector, The clip needs to be pushed down, removal of the connector from the black box.

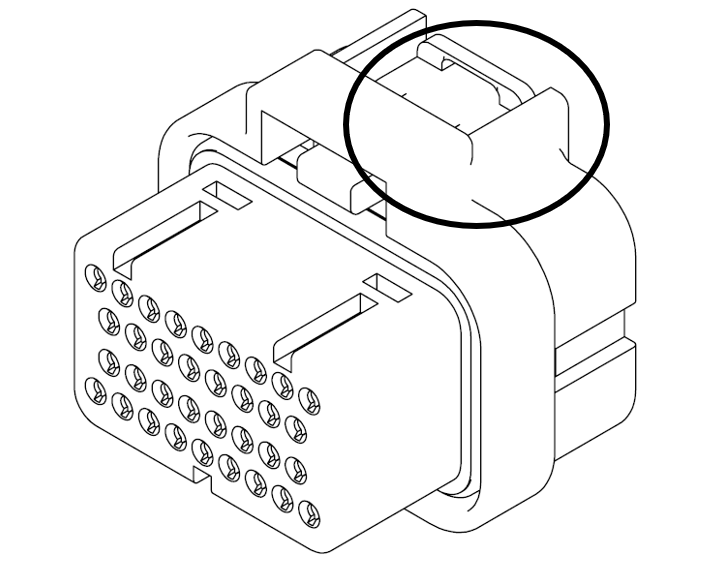

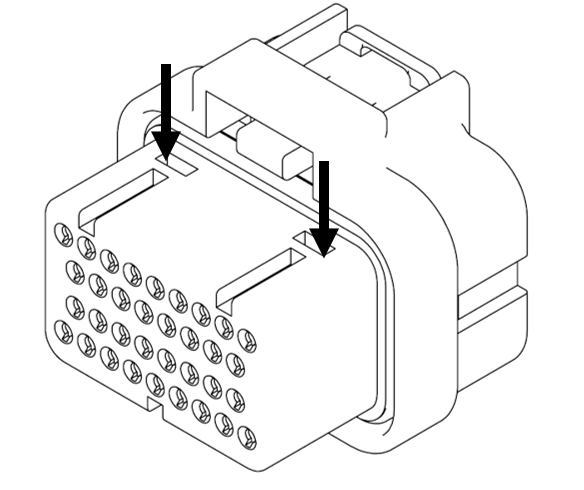

To populate the connector with pins we need to disengage the lock tab. To unlock we need to push the tab at the bottom up.

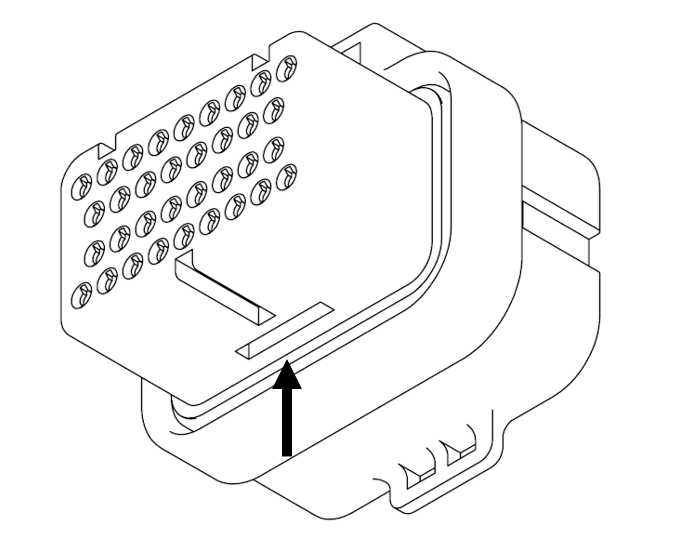

To lock we need to push the tabs at the top up

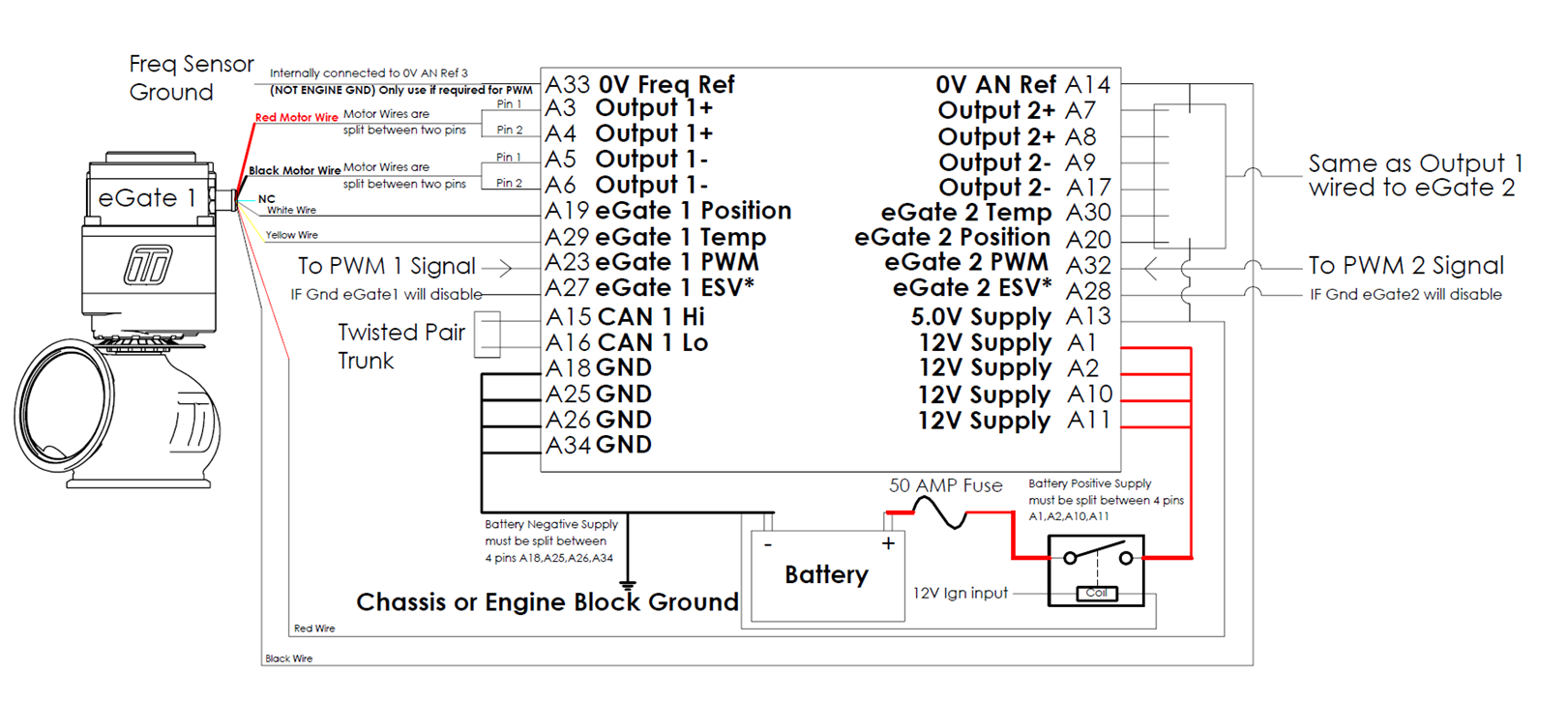

Pinout Designation

Depending on the number of eGates that are running will dictate what wiring is needed.

Focusing on 1 eGate we must use all that are designated eGate 1. If a second eGate is used it must be wired to the corresponding eGate 2 Positions.

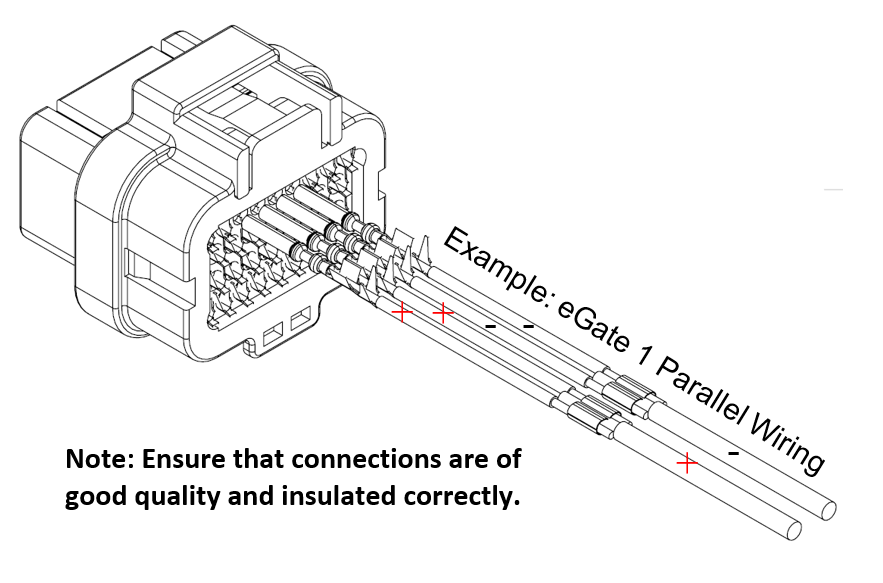

Outputs must be wired to two pins with high current wire as pins are limited to 6 Amps. A suitable gauge wire should be used that is capable




Pinout Current Sharing

Due to the high current nature of Black Box, the connector pins are current limited. To allow for high current to flow a correctly matched power supply wire must be used. This is then Paralleled to allow for the correct current to flow to each eGate. The Power and Ground are to be wired up to each 4 pins to manage the correct current for the Black Box to distribute.

 Pin Limit

Each Pin is rated for 15A per pin (This is wire gauge dependant)

Recommended Wire Limit

Motor Wire

14AWG or better.

USB Port


The USB port is accessed at the opposite end of the black box. It is held on via a 2.5mm Allen key bolt once removed a USB micro female connector is visible this is required to be accessed to setup and configure the Black box. NOTE!

The USB port must be fitted after tuning is done.


Control Options

Pulse Width Modulation (PWM) Input

PWM is the standard for Boost Control solenoids, the Black Box can use this frequency input as position input for the e-Gates. The PWM inputs must be wired in correctly.

The Black Box accepts both high and low side inputs. The Rising edge threshold is 1.65V and the falling edge threshold is 1.0V. As long as the PWM signal alternatives across these values the signal can be used. The Low side is the digitally pulsed output from a standard boost controller. The low side is the negative trigger. It's more common and easier to use, a standard boost controller commonly uses 12V and a digitally pulsed output. This Digitally pulsed output should be wired in to the A23 for eGate 1

Note In some cases PWM input will be turned off if Over boost is exceeded. This will result in the valve closing as the PWM input is turned off (0%). Ensure that Boost Control is set in such a way that the value is never set to OFF.

Frequency Recommended

100Hz

Frequency Possible Range

25-100Hz

Connections Required

A23 - eGate 1 PWM input

A32 - eGate 2 PWM input

0% Duty Cycle

Gate Closed

100% Duty Cycle

Gate Open

eBoost PWM Hook-up

It is required to setup the eBoost to use the Auxiliary output to disable the Black Box in the event of a boost level reaching over the required level.

The OBS (Over boost) Feature must be set, but it must be set greater than the Auxiliary output bOn. Failure to do so will see the eBoost default to off and close the valve, resulting in higher boost pressure. The bOn (Boost On Feature) White Wire will be wired to the Enable switch voltage and disable the Valve in the event of an over boosting.

The Auxiliary Output is located on the white wire from the eBoost this must then terminate to the corresponding gate which is to be disabled.

For example, we have selected a random boost pressure in this case of 20psi. bOn(Boost On) must be set to 20psi. Over boost should be set to the maximum possible value to ensure it does not interfere.

eBoost Only Settings

eBoost PWM Wire

Grey Wire

eBoost Auxiliary Wire

White Wire

0% Duty Cycle

Gate Closed

100% Duty Cycle

Gate Open

CAN Bus Input

Can Bus information must be transmitted from an ECU to the Black Box. This information is addressed in the datasheet for specific address for Transmitted and Received data.

 The CAN information required for the eGate to function correctly at a minimum requires the Boost Control Duty Cycle to be transmitted to the Black Box. As An example, here is the CAN Address required for eGate 1 to Function

Connections Required

A15 - Can High

A16 - Can Low



Base Address 0x110 (272)

Byte 0,1 Area Target Egate 1 0-100.0% (0-1000)

This address allows for the area position to be transmitted to the Black box for the Black Box to target the correct position to effectively use the CAN BUS, as much information as possible should be used.

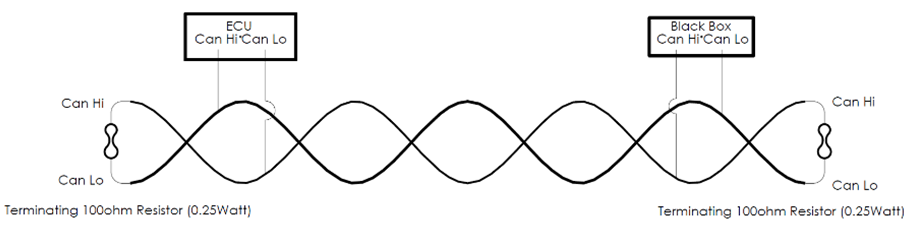

CAN Bus Wiring

The CAN Bus is a network within a vehicle that allows for vast amounts of information to be shared within each part of the vehicle.

  1. CAN BUS Trunks should be no more than 500mm long from the main trunk
  2. The twisted wire should have one twist per 50mm
  3. A terminating resistor must be placed on either end of the Main harness trunk if more than 2m. Less than 2m will only require one. (100Ω 0.25W Resistor)
  4. Max Length is 16m long.

·


USING YOUR TURBOSMART BLACK BOX CONFIG TOOL SOFTWARE


Installing Software

The Turbosmart Black Box Config Tool is available to download from the Turbosmart Website at

Turbosmart Black BoxConfig Tool

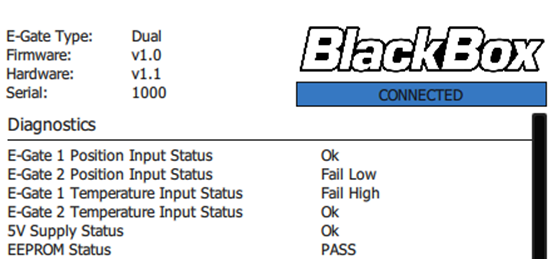

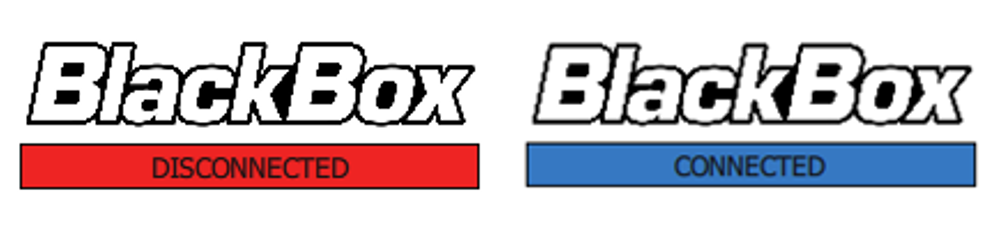

Connecting to Black Box

The first step after physically connecting the USB to the Black Box. We see the feedback from the software on the state of the connection in the top right corner.

NOTE!

The Black Box requires the wiring to be completed as power is sourced from the car.

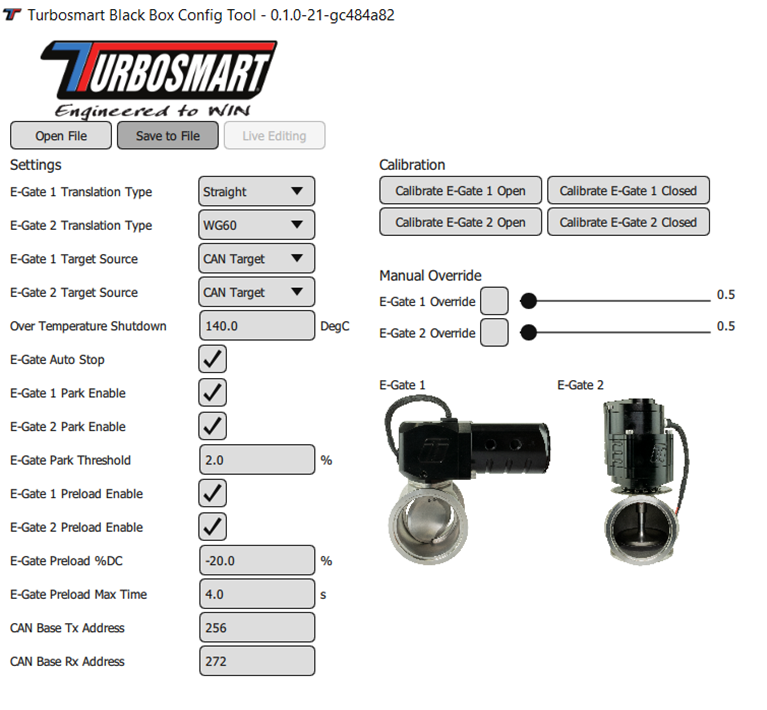

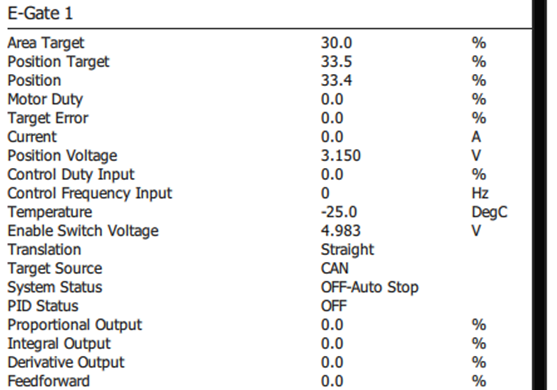

User Interface


A breakdown of the software layout and the features that are available with the Black Box.



·         Open File

o    Saved Files configurations can be opened from here.

·         Save to File

o    Open files can be saved in here

·         Live Editing – Write to Device

o    The Black box will give you two options depending on what state Black Box is in.

§   Write to Device sends a configuration

§   Live Editing allows the Black Box to make live edits to the configurations while being connected to Black Box.

·         Translation Type

o    Poppet Default

§   A default option to that operates all Poppet style eGates. This is optimised to match flow capacity to valve height but not optimised to the specific Wastegate size.

§   Example 50% Position is requested may not output 50% Valve Position due to flow matching.

o    Poppet 1:1 Ratio

§   An option that matches valve height percentage and position percentage. This could be common if using the eGate as an exhaust cut out.

§   Example 50% Position is requested will output 50% Valve Position due to 1:1.

§   This could be used for an Electric antilag valve.

o    WG40

§   A default option to that operates the Wastegate 40 Poppet style eGates. This is optimised to match flow capacity to valve height

§   Example 50% Position is requested may not output 50% Valve Position due to flow matching.

§   Recommended for most applications running this Wastegate.

o    WG45

§   A default option to that operates the Wastegate 45 Poppet style eGates. This is optimised to match flow capacity to valve height

§   Example 50% Position is requested may not output 50% Valve Position due to flow matching.

§   Recommended for most applications running this Wastegate.

o    WG50

§   A default option to that operates the Wastegate 50 Poppet style eGates. This is optimised to match flow capacity to valve height

§   Example 50% Position is requested may not output 50% Valve Position due to flow matching.

§   Recommended for most applications running this Wastegate.

o    WG60

§   A default option to that operates the Wastegate 60 Poppet style eGates. This is optimised to match flow capacity to valve height

§   Example 50% Position is requested may not output 50% Valve Position due to flow matching.

§   Recommended for most applications running this Wastegate.

o    Straight 1:1 Ratio

§   An option that matches valve height percentage and position percentage. This could be common if using the eGate as an exhaust cut out.

§   Example 50% Position is requested will output 50% Valve Position due to 1:1.

o    Straight

§   A default option to that operates the Straight Gate style eGates. This is optimised to match flow capacity to valve height

§   Example 50% Position is requested may not output 50% Valve Position due to flow matching.

§   Recommended for most applications running this Wastegate.

o    Reserved

§   Selected if Gate is not being used.



·         Target Source

o    CAN Target

§   CAN Target selects the CAN Bus network as the source for Wastegate Information. A large amount of information can be transmitted and received over this network.

§   Recommended to allow the full potential of the Black Box.

o    PWM Target

§   Pulse width modulation is defined as a percentage of a set period. For example, to achieve a 25% Duty cycle we need to have the PWM ON for 25% of the time period and OFF for 75%.

§   This is the most common boost control method used with three port boost controllers.

§   Can be used with most Factory ECU’s

§   Easier option but does not allow for the full potential of the Black box.



·         Overtemp

o    A user defined value that the eGates will shut down if the internal temperature is reached.

o    The gates are internally calibrated to a maximum value of 150degC (302degF).

o    Value is typically 140degC(284 degF) But must be less than 150degC (302degF).


·         Egate AutoStop Feature

o    Autostop

§   The Autostop feature allows for current to be preserved if the gate sees no change in position demand for 5 seconds. This allows the gate to remain at its current position preserving current until a change is registered.

§   Typically selected



·         Park Feature

o    Park Enable

§   The Park Enable feature, the Park Enable allows the Gate to get to a user defined Park Threshold percentage and stop supplying current to the motor. When selected and the target is less than Park Target Threshold for 2 seconds the motor will switch off.

§   Typically selected

                              §   Note that failure to enable Park Feature may result in the valve continuously moving and resulting in overcurrent due to the integral of current being above the allowable limit.

o    Park Threshold

§   Used when Park Enable is selected. This is the Position Percentage that the gate will be considered closed. This value typically should be 2%.

§   When selected and the target is less than Park Target Threshold for 2 seconds the motor will switch off.


·         Preload

o    Preload Enable

§   Enables the Preload enable feature, this feature allows the gate to be driven harder into the seat once the gate measures deviation from its aim path.

§   Applied to both eGates

o    Preload DC

§   Preload Duty cycle is the amount of duty cycle the gate will preload the valve with. This Value is typical -20% it should be a negative valve.

o    Preload MAX time

§   Max time is the amount of allowable time that position demand can be ramped to ensure preload on the valve.

·         CAN Address

o    The CAN BUS network allows for a large amount of information to be transmitted and received over a simple two wire twisted pair network. This allows vast amounts of information to be shared and adapted to many advanced tuning strategies.

o    CAN Address may need to move as other data may conflict with these base address.

o    This address must correspond to the relevant address on the ECU Can bus.



o    TX - Transmit

§   Typically

§   Decimal = 256

·         Converted

o    Hexadecimal (0x100)

o    RX - Receive

§   Typically

§   Decimal = 272

·         Converted

o    Hexadecimal (0x110)

·         Calibration

o    Automatic Calibration is set by selecting which e-Gate and the state that the calibration is required. It is highly advisable to select both open and closed calibration.

o    A Set value is predefined by Turbosmart, these Offsets are stored as calibration offset Voltages at either state.

o    NOTE: It is also advisable to move the gate with Manual Override when calibrating to the 25% mark and 75% mark depending on which calibration is required.

·         Manual Override

o    The option to manually select the position for the valve to move to that overwrites any position data feed from the ECU.

This should be used for diagnostic purposes.

Connected User Interface

Once connected and a file has been loaded e-Gate Positions are populated. As well as Calibration options are now accessible.



User Interface Data Read Out

While connected to the Black Box the selection of Data that is collected via the Black Box is presented to for troubleshooting, verification, and tuning.



·         Diagnostics

o    E-Gate Position status

§   The Position status can be Ok, Fail Low and Fail High readout on the status of the calibrations that the eGate is reporting to the Black Box.

§   Failing Low indicates a Position lower than the calibration is expecting

§   Failing High indicates a Position higher than the calibration is expecting



o    E-Gate Temperature Status

§   The Temperature status can be Ok, Fail Low and Fail High readout on the status of the calibrations that the eGate is reporting to the Black Box.

§   Failing Low indicates a Temperature lower than the calibration is expecting

§   Failing High indicates a Temperature higher than the calibration is expecting

o    5V Supply Status

§   The Temperature status can be Ok, Fail Low and Fail High readout on the status of the calibrations that the eGate is reporting to the Black Box.

§   Failing Low indicates a Voltage lower than the calibration is expecting

§   Failing High indicates a Voltage higher than the calibration is expecting

§

o    EEPROM Status

§   Indicates the Black Box is working correctly with the required software.



eGate 1/2 Readout - Refer to Datasheet for Possible outputs.

o    Area Target

§   Area Target uses the position target and converts it using the flow characteristics so 50% flow is 50% Position, but not 50% valve position.

§   0-100%

o    Position Target

§   Position Targeted from the ECU.

§   0-100%

o    Position

§   Position of eGate in a percentage for Valve Position

§   0-100%

o    Motor Duty

§   Motor Duty cycle required to move the eGate to the requested target.

§   +/- 0-100%

o    Target Error

§   Percentage error from requested target.

§   +/- 0-100%

o    Current

§   Current flowing to the eGate to as requested to allow for movement.

§   Amps

o    Position Voltage

§   Raw Voltage from eGate encoder.

§   0.5-4.5V

o    Control Duty Input

§   PWM Duty cycle required while PWM option is selected.

§   0-100%

o    Control Frequency Input

§   Frequency of which the signal is sent to the Black Box

§   Recommended 100Hz

o    Temperature

§   Temperature from the eGate encoder.

§   Displayed in DegC Only

§   0-150degC

§   32-302degF

o    Enable Switch Voltage

§   If this Voltage is grounded, the corresponding eGate will be disabled.

o    Translation

§   Readout of the current selected eGate for the Position selected

§   Turbosmarts Wastegate Selection

o    Target Source

§   Shows the current target source selection.

§   CAN or PWM

o    System Status

§   Current Status of logic being performed on the eGate

                              §   Note: Over Current Status will require power to be cycled.
EnumerationStatus Status Condition
0 OFF System Standby
1 Reserved Reserved
2 OFF-IC Reset Not Relevant in Field
3 OFF-Posn Sensor Err. The valve is outside the allowable 4.5V to 0.2V window.
4 OFF-Enable Sw Enable switch is grounded, gates are disabled from moving from position input.
5 OFF-Over-Temp Valve drives to open condition until temperature is under (Overtemperature shutdown - 10 degC)
6 OFF-Auto Stop Valve has met conditions to allow for auto stop. Will only move once change is detected.
7 OFF-Parked Valve is not moving and has parked up. Awaiting change larger than park threshold.
8 OFF-Over Current Current intergral has exceeded the allowable limit. (Current Supply Vs Time) Black box will attempt 3 times before disabling. (Power Cycle necessary)
9 -
10 Calibrating 0% Posn .. Calibrating the 0% Position
11 Calibrating 100% Posn .. Calibrating the 100% Position
12 Calibrate Complete !! Calibration has cycled and completed
13 eGate Current Calibrating Reports when egate closed or open calibration is being commanded.
14 eGate Parked Reserved
15 eGate Prespool Reserved
16 ON-Temp Sensor Fault The temperature signal is not being reported to the ECU. Valve is still active with no temperature signal
17 ON-Target CAN Valve is using the CANBUS Signal
18 ON-Target PWM Valve is using the PWM signal
19 ON-Target USB Override USB Black Box software is being used to command position
20 ON-Pass-Through %DC Valve is being sent raw motor duty cycle
21 ON-PreLoad Active Only used if preload command is sent over CAN BUS

o    PID Status

§   Current Status of movement logic being applied to the eGate

o    Proportional Output

§   Percentage of Proportional Control being applied to the Motor Driver

o    Integral Output

§   Percentage of Integral Control being applied to the Motor Driver

o    Derivative Output

§   Percentage of Derivative Control being applied to the Motor Driver

o    Feedforward

§   Predetermined Table applied to aid in targeting correct position


·         General

o    14V Motor Supply Readout

§   Battery Voltage being supplied to Black Box



o    5V Supply

§   5V Supply Voltage being supplied to Black Box Sensors

o    Device Temperature

§   Internal Temperature of the Black Box

o    Calibration Offsets

§   Open

·         Voltage Deviation from pre-set calibration values.

·         Values over indicate +/-0.2V indicate possible issue with manual calibration



§   Closed

·         Voltage Deviation from pre-set calibration values.

Values over indicate +/-0.2V indicate possible issue with manual calibration



TROUBLE SHOOTING

It is important that any issues are resolved before heavy driving.

Black Box will not turn on

  1. Ensure Good quality wire is being used that is rated correctly
  2. Check for Wires Shorting to Ground.
  3. Good Quality Ground point has been selected

No Communication with Black Box

  1. Ensure decent quality USB and connector is correctly seated
  2. Verify Voltage and Ground at Black Box Connector

Failing the above, submit a technical request to tech@turbosmart.com.au with information of your Black Box configuration and photos of installation. As well as any information regarding wiring.



    • Related Articles

    • eSG Electronic StraightGate Instructions

      Product Name: eSG Electronic StraightGate Product Description: eSG Electronic StraightGate External Wastegate Product Number: TS-0563-1002, TS-0565-1002 ,TS-0567-1002 Important Notes on Your New Electronic StraightGate Turbosmart accepts no ...

    • TS-0304-100X - Electronic BOV Controller

      Product Name: BOV Controller Product Description: TS-0304-100X - Electronic BOV Controller Product Number: TS-0304-1005, TS-0304-1006, TS-0304-1009, TS-0304-1003, TS-0304-1002, TS-0304-1001 Important notes on your Electronic BOV Controller Please ...

    • TS-0265-1042 - eBG50 Electronic Boost Gate

      Product Name: eBG50 Electronic BoostGate50 Black Product Description: eBG50 Electronic BoostGate50 Black Product Number: TS-0265-1042 Important notes on your new Electronic Boost Gate The electronic boost gate is designed for use with a forced ...

    • TS-0625-3143 -GenV IWG (Twin Port) Wastegate Actuator Suit Garrett G25 14 Psi - Instructions

      Product Name: GenV IWG (Twin Port) Wastegate Actuator Product Description: GenV IWG (Twin Port) Wastegate Actuator Suit Garrett G25 14 Psi Product Number: TS-0625-3143 Important Notes on Your Internal Wastegate Actuator Turbosmart accepts no ...

    • TS-0604-1155 - vIWG R56 Mini Cooper S - Instructions

      Product Name: vIWG R56 Mini Cooper S - 6InHg Product Description: vIWG R56 Mini Cooper S - 6InHg Product Number: TS-0604-1155 Important Notes on Your Vacuum Internal Wastegate Turbosmart accepts no responsibility for the incorrect installation of ...
