TS-0891-XXXX Oil Cap - Instructions

TS-0891-XXXX Oil Cap - Instructions

Product Name:

Oil Cap

Product Description:

Turbosmart Oil Caps

Product Number:

TS-0891-XXXX

Notes
Important Notes on Your Oil Cap

  1. Turbosmart accepts no responsibility whatsoever for the incorrect installation of this product which is potentially hazardous and can cause serious engine damage or personal injury.
  2. Ensure that all plumbing is appropriately secured.

Idea
Recommendations

  1. Turbosmart recommends that an appropriately qualified technician fits your oil cap.

Info
Kit Contents
Please check that the following items have been provided in your Oil Cap kit.

Quantity
Description
Use
1
Turbosmart Oil Cap
Main Unit
1
Turbosmart Sticker
Turbosmart Sticker

How to Install Your Oil Cap

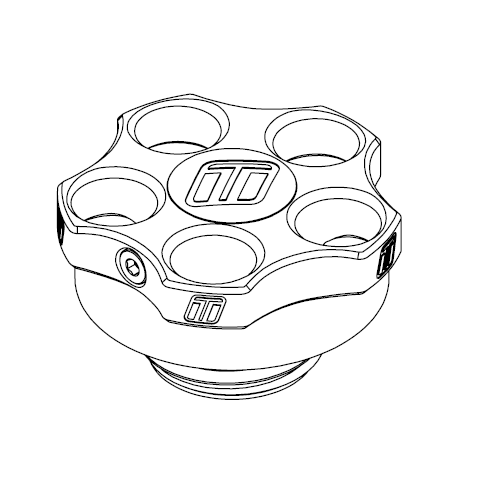

Figure 1 - Kit Contents



Tools Required

No

Description

1

Metric Allen Key Set


Fitting Your Oil Cap

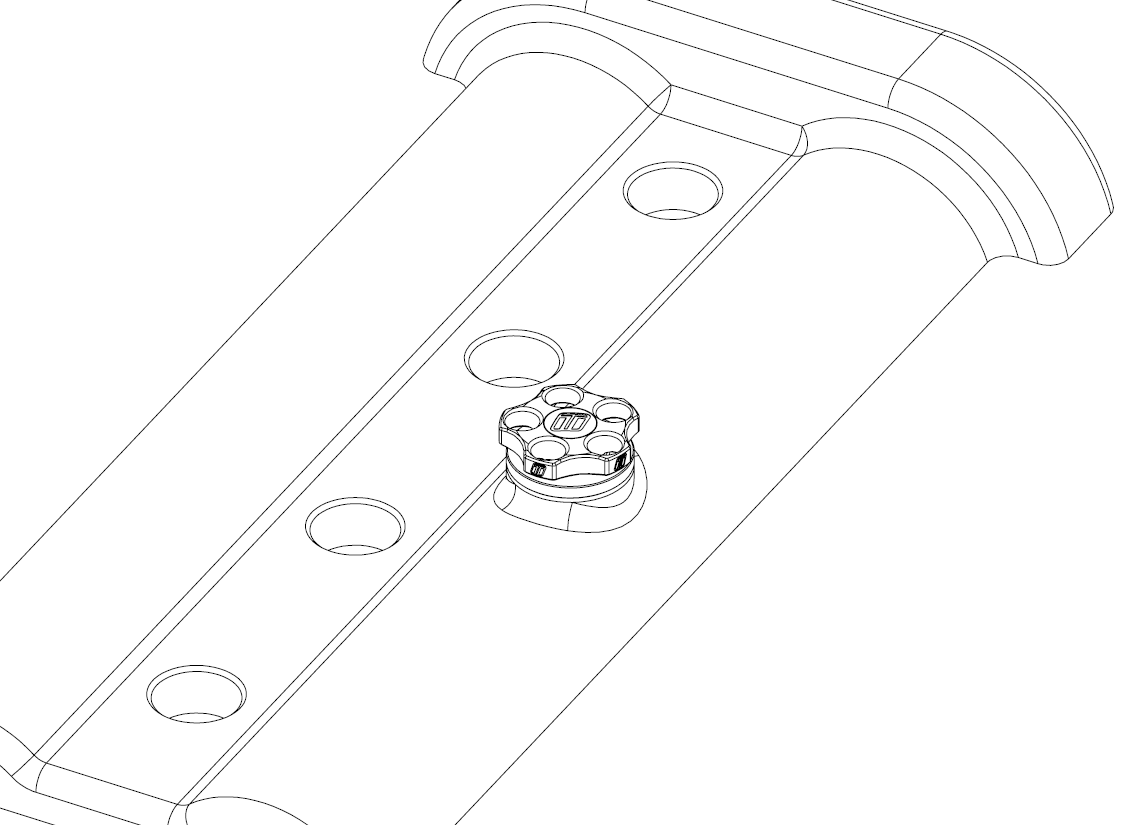

Locate your Oil Filler Cap

While looking at the engine the oil cap is usually noted with a label or engraving that says "OIL" or "710".


Notes
Note: The engine should be completely off and cooled down before starting.



Remove Oil Cap

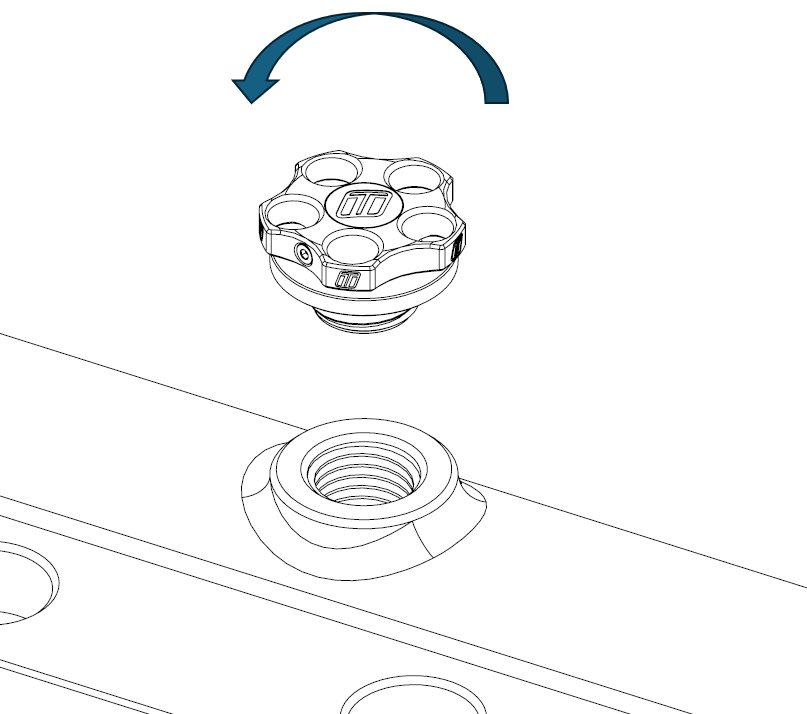

Remove the Oil Cap by gripping the cap tightly and unscrewing it counter clockwise (left) to unscrew the oil cap. Once loose, life the cap off an set it aside. Before putting in the new cap any debris should be removed before refitting the new cap. Cleaning the surface is advised if oil residue is present. BEWARE of any foreign objects falling into the engine oil.



Installing your Turbosmart Oil Cap

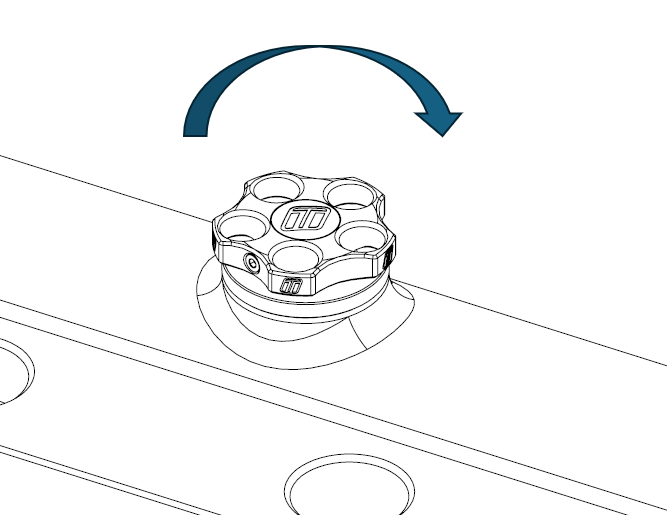

Take the new oil cap out of the packaging. The Oil cap comes fitted with a blank with the correct O-Rings in place as well as locating screw. The new oil cap is tightened in a clockwise direction ensuring the bottom O-Ring remains held captive. Avoid over tightening. Congratulations your oil cap is now fitted.


OPTIONAL: Installing your Turbosmart Oil Cap Custom Centre

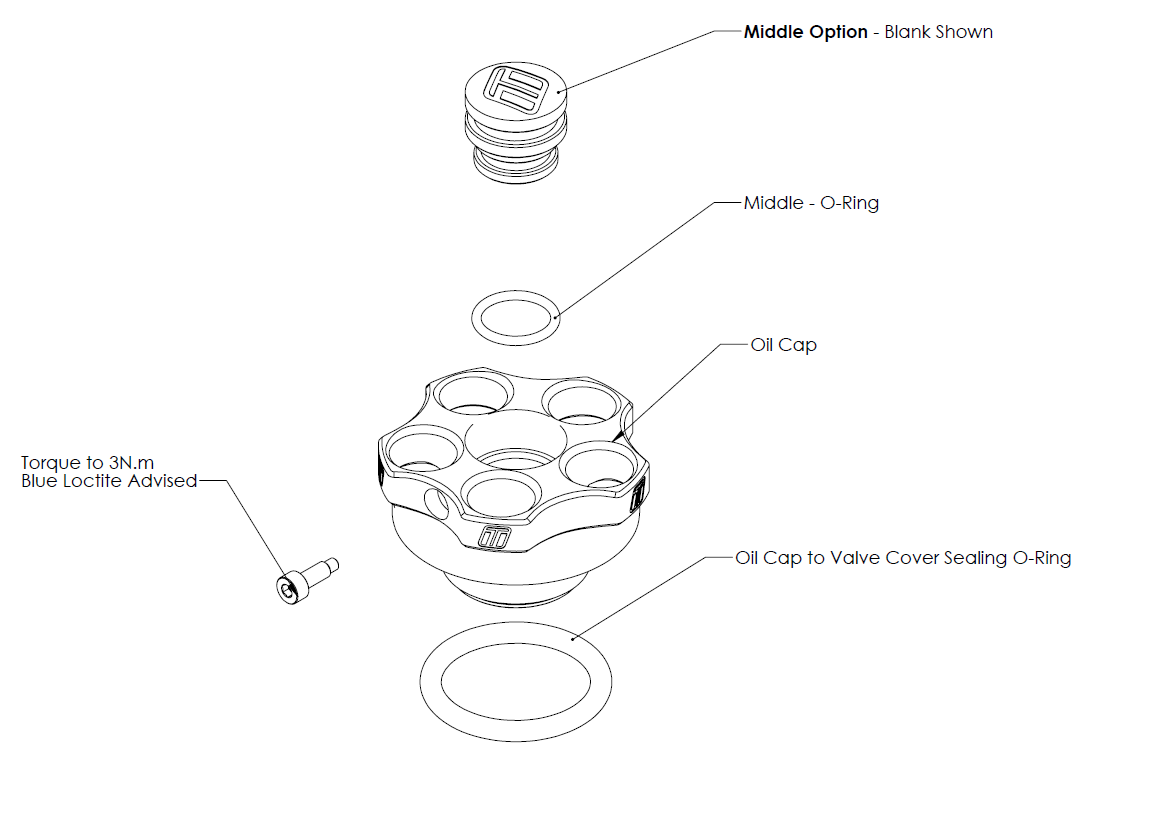

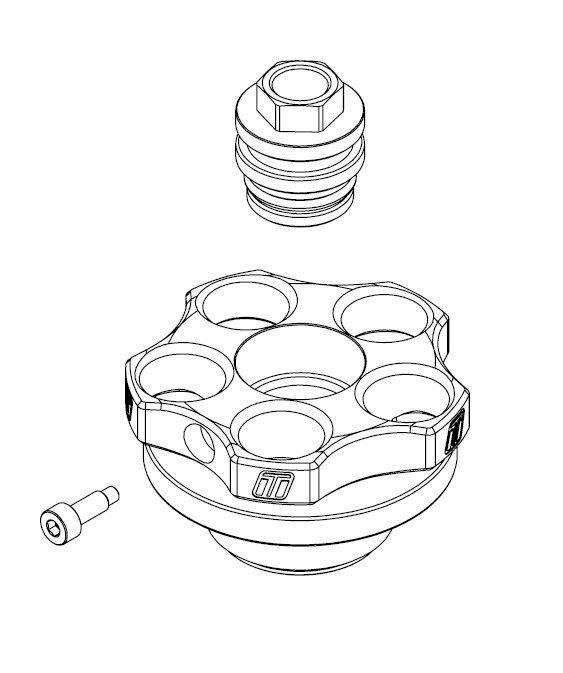

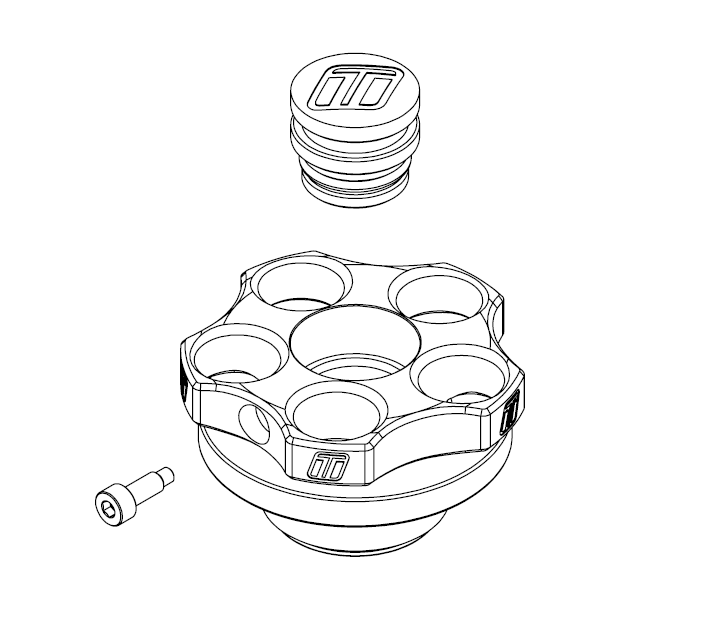

The Turbosmart Oil caps with a customisable centre allowing users to have different options for their oil cap weather that be for returning Oil or a breather setup. The middle section is easily swapped with removing the M4 screw and pushing the middle section out of the top.  Picture here is a blank being swapped with the Female 1/8 NPT. Blue Loctite should be used on the M4 and Torqued to 3N.m.


Product Data Information

Oil Cap Part Number

Oil Cap Part NumberDescription
TS-0891-0070Oil Cap - 12AN - Polished
TS-0891-0071Oil Cap - 12AN - Blue
TS-0891-0072Oil Cap - 12AN - Black
TS-0891-0073Oil Cap - 12AN - Purple
TS-0891-0074Oil Cap - 12AN - Red
TS-0891-0170Oil Cap - M35x4 -Ford/Mazda - Polished
TS-0891-0171Oil Cap - M35x4 -Ford/Mazda - Blue
TS-0891-0172Oil Cap - M35x4 -Ford/Mazda - Black
TS-0891-0173Oil Cap - M35x4 -Ford/Mazda - Purple
TS-0891-0174Oil Cap - M35x4 -Ford/Mazda - Red
TS-0891-0270Oil Cap - Notch - LS - Polished
TS-0891-0271Oil Cap - Notch - LS - Blue
TS-0891-0272Oil Cap - Notch - LS - Black
TS-0891-0273Oil Cap - Notch - LS - Purple
TS-0891-0274Oil Cap - Notch - LS - Red
TS-0891-0370Oil Cap - M32x3.5 - Nissan - Polished
TS-0891-0371Oil Cap - M32x3.5 - Nissan - Blue
TS-0891-0372Oil Cap - M32x3.5 - Nissan - Black
TS-0891-0373Oil Cap - M32x3.5 - Nissan - Purple
TS-0891-0374Oil Cap - M32x3.5 - Nissan - Red
TS-0891-0470Oil Cap - M42x4.5 - Subaru - Polished
TS-0891-0471Oil Cap - M42x4.5 - Subaru - Blue
TS-0891-0472Oil Cap - M42x4.5 - Subaru - Black
TS-0891-0473Oil Cap - M42x4.5 - Subaru - Purple
TS-0891-0474Oil Cap - M42x4.5 - Subaru - Red
TS-0891-0570Oil Cap - M37x3 -Toyota  - Polished
TS-0891-0571Oil Cap - M37x3 -Toyota  - Blue
TS-0891-0572Oil Cap - M37x3 -Toyota  - Black
TS-0891-0573Oil Cap - M37x3 -Toyota  - Purple
TS-0891-0574Oil Cap - M37x3 -Toyota  - Red

Middle Option Part Numbers

Middle Part Number Description
TS-0891-3012 Oil Cap - 1-8 Centre - Black
TS-0891-3015 Oil Cap - 1-8 Centre - Clear
TS-0891-3022 Oil Cap - -4AN Centre - Black
TS-0891-3025 Oil Cap - -4AN Centre - Clear
TS-0891-3032 Oil Cap - -6AN Centre - Black
TS-0891-3035 Oil Cap - -6AN Centre - Clear
TS-0891-3042 Oil Cap - -8AN Centre - Black
TS-0891-3045 Oil Cap - -8AN Centre - Clear
TS-0891-3052 Oil Cap - -10AN Centre - Black
TS-0891-3055 Oil Cap - -10AN Centre - Clear
TS-0891-3062 Oil Cap - 12AN Centre - Black
TS-0891-3065 Oil Cap - 12AN Centre - Clear
TS-0891-3070 Oil Cap - Blank - Polished
TS-0891-3071 Oil Cap - Blank - Blue
TS-0891-3072 Oil Cap - Blank - Black
TS-0891-3073 Oil Cap - Blank - Purple
TS-0891-3074 Oil Cap - Blank - Red
TS-0891-3075 Oil Cap - Blank - Clear

Spares Part Numbers

Spares Part Number Description
TS-0891-3001 TS-0891-017X/TS-0891-057X/TS-0891-037X O-Ring Set
TS-0891-3002TS-0891-027X O-Ring Set
TS-0891-3003 TS-0891-037X  O-Rings

Info
Troubleshooting

  1. Oil Cap Leaking, Cap is not tight enough and or missing, ensure all O-rings are present.
